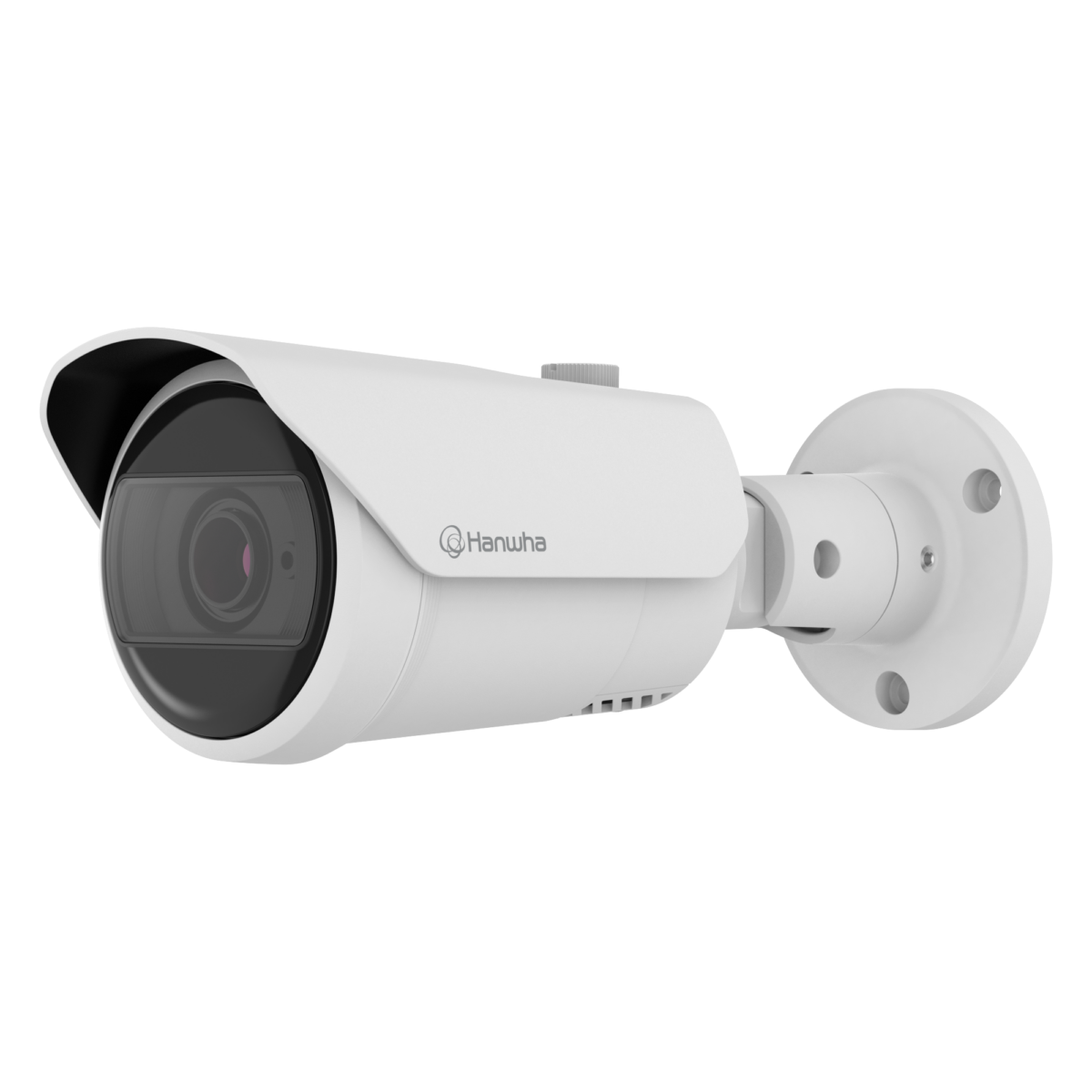

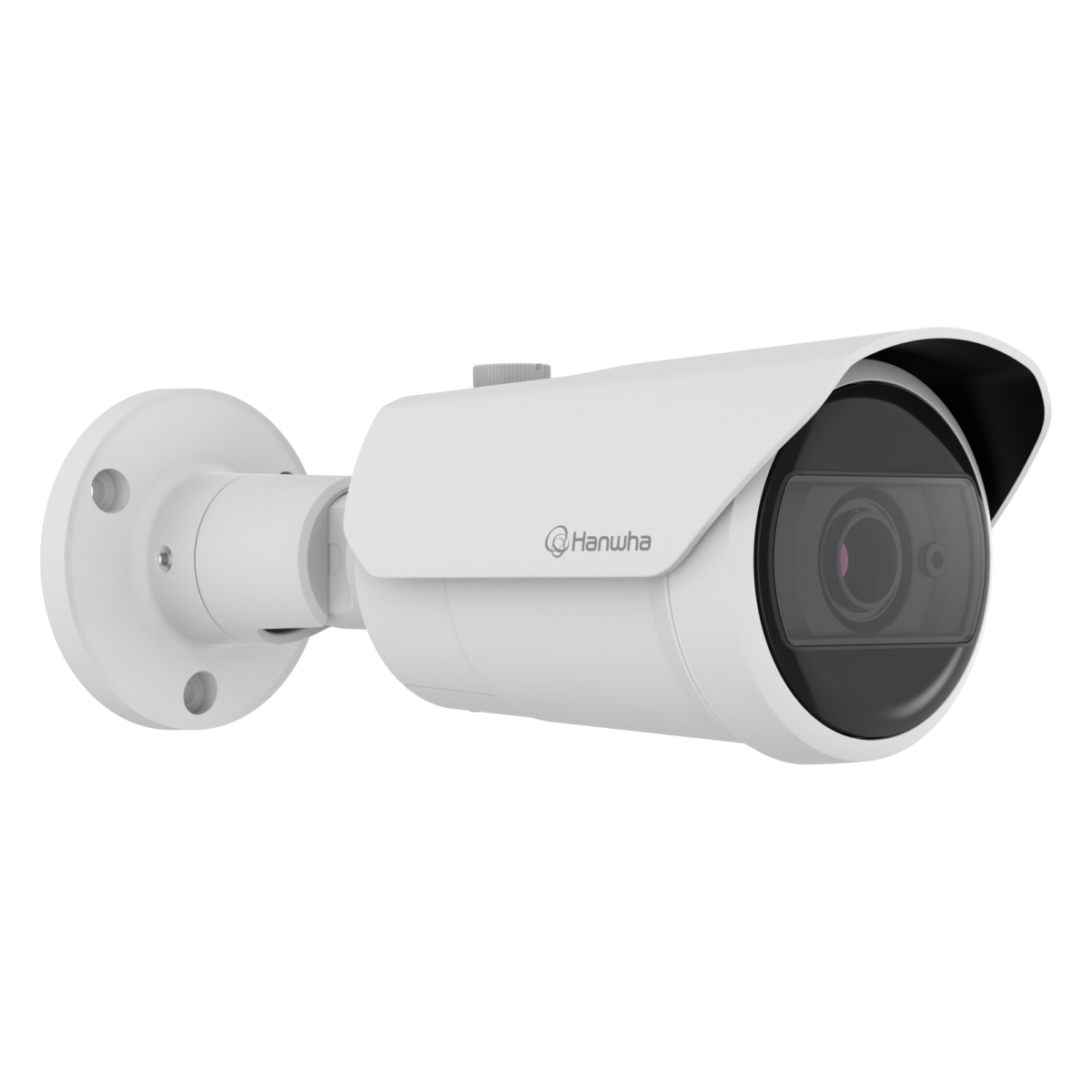

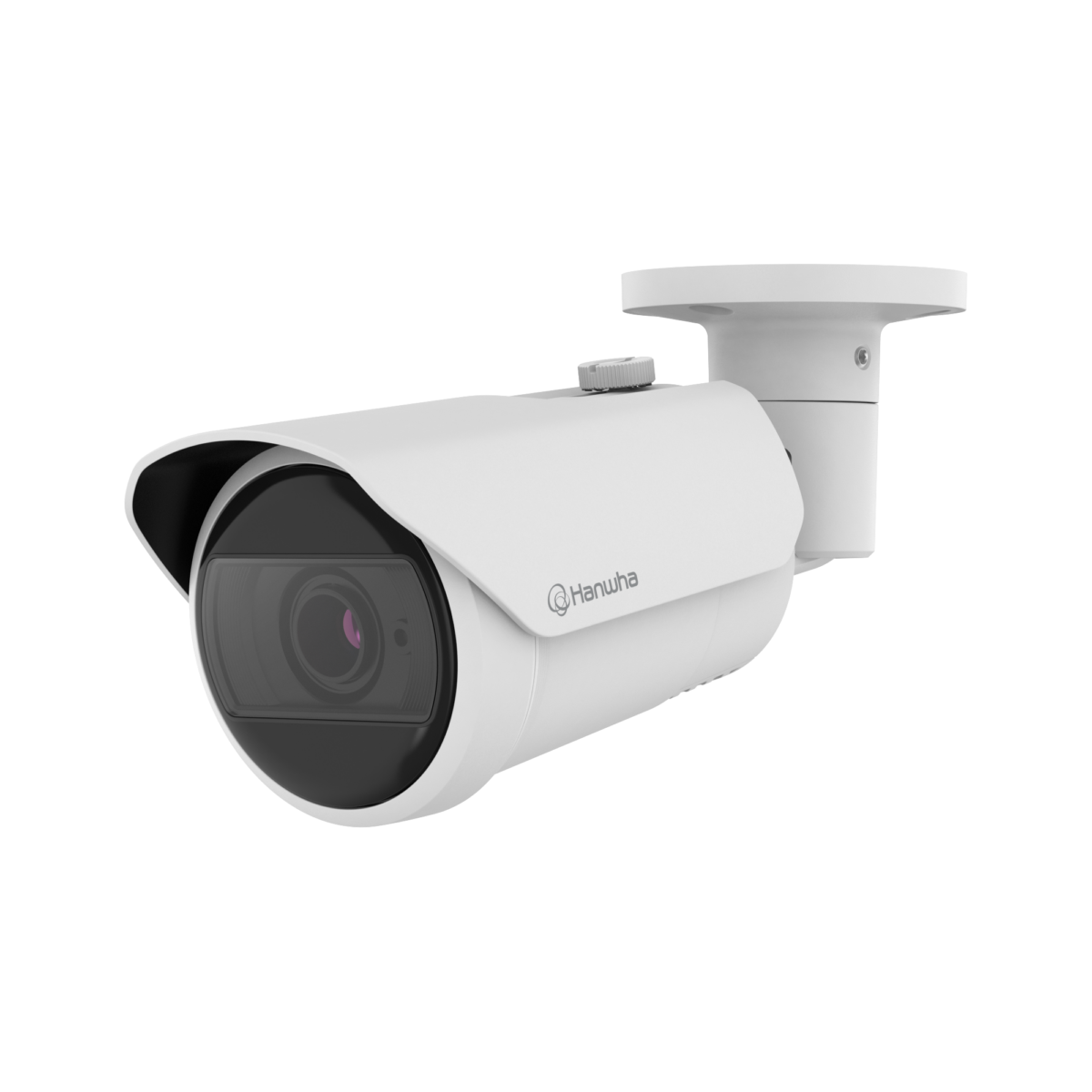

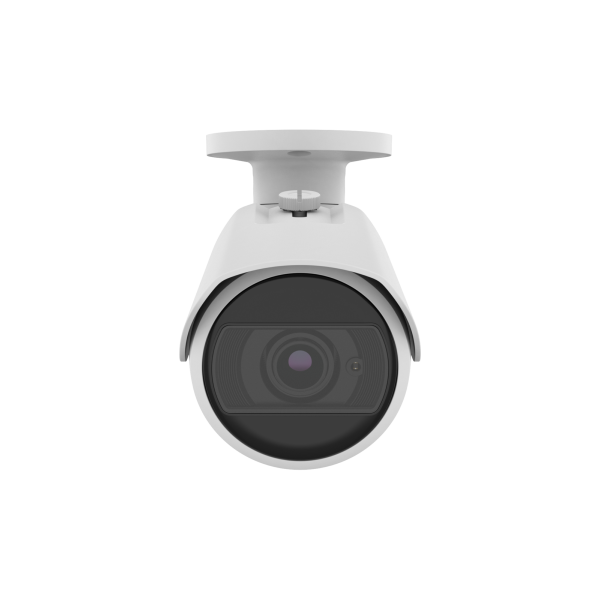

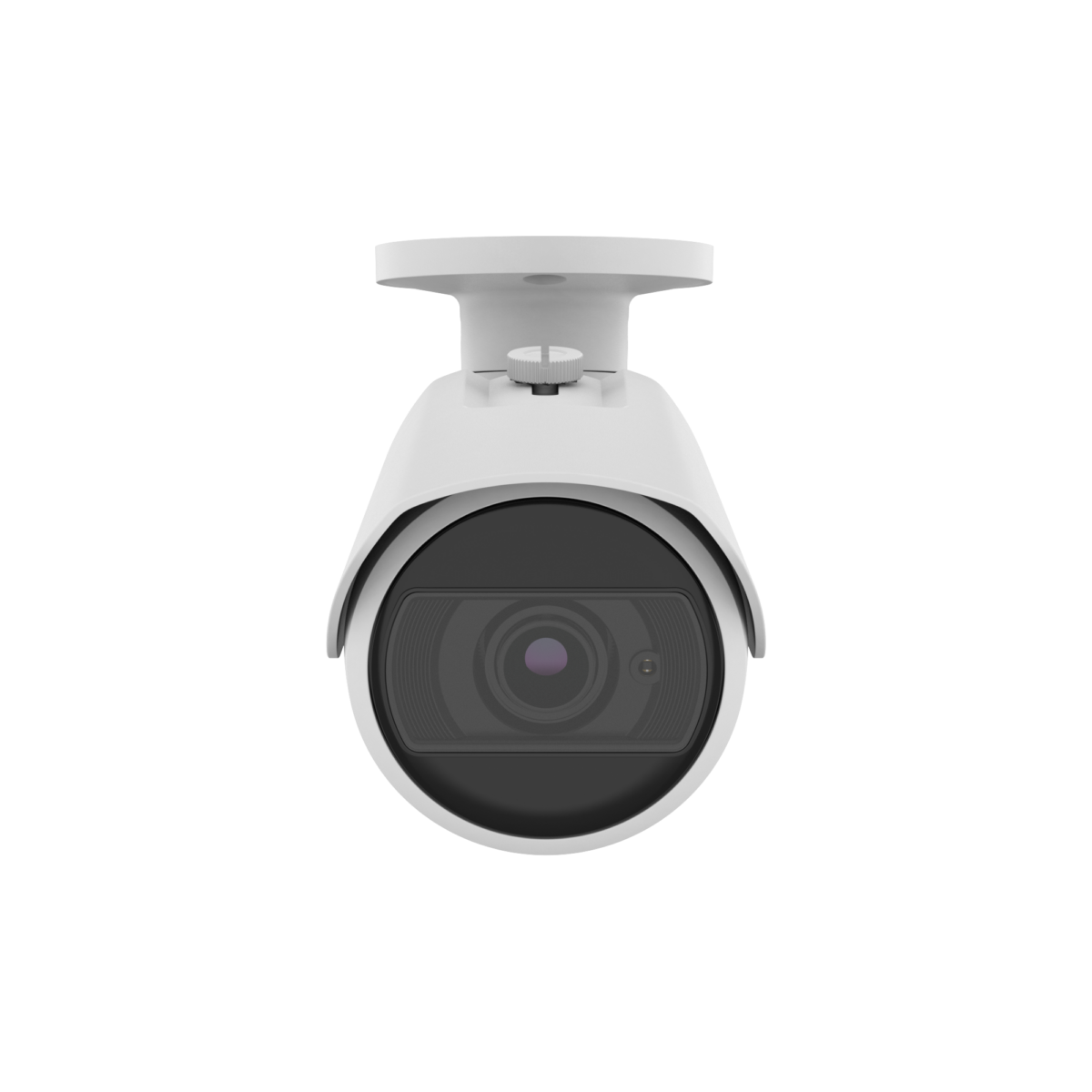

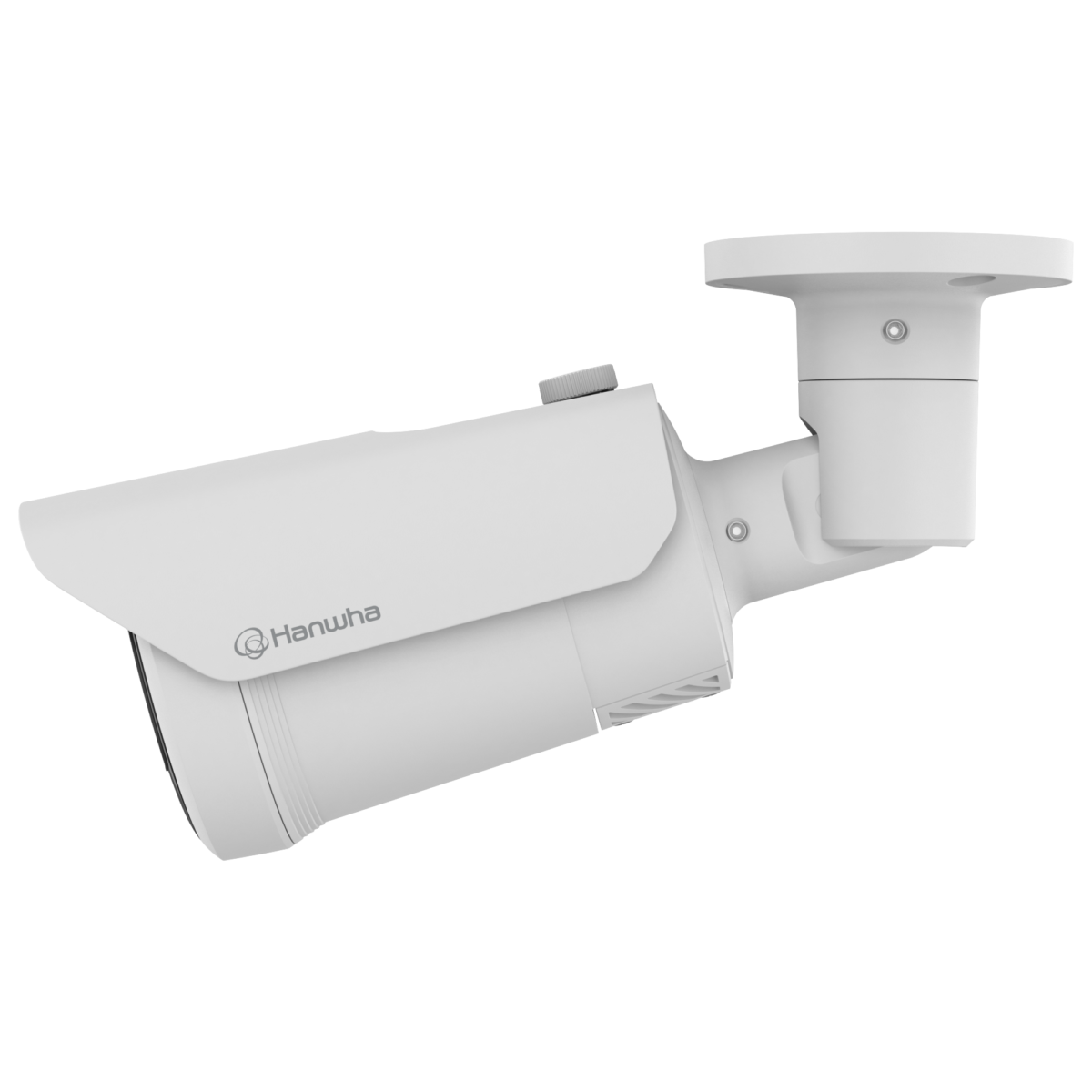

Product Specification
| Video | |
|---|---|
| Imaging Device | 1/2.8″ CMOS |
| Resolution | 2592×1944, 2560×1440, 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.07Lux(F1.6, 1/30sec, 30IRE) BW: 0.007Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10.2mm(3.2x) motorized varifocal |
| Optical Zoom | 3.2x |
| Max. Aperture Ratio | F1.6(Wide)~F3.1(Tele) |
| Angular Field of View | H: 95°(Wide)~29°(Tele) V: 69°(Wide)~21°(Tele) D: 126°(Wide)~36°(Tele) |
| Min. Object Distance | 1.2m(3.93ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~100°/ 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones – Color: Gray/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine – Motion detection*, Object detection, Virtual line*(Crossing/Direction), Virtual area*(Loitering/Intrusion/Enter/Exit) Analytics events – Defocus detection, Tampering, Virtual area(Appear/Disappear)* Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm events | When alarm trigger occurred – File upload(image) : e-mail/FTP – Notification : e-mail – Recording : SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) – Audio clip playback – MQTT: publication |
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 30m(98.42ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30°C~+60°C(-22°F~+140°F)(MAX) / 0~100% RH(Condensing) * Start up should be done at above -30°C Humidity control /w Air vent |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 12W, typical 5.3W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø93.4×245.8mm(ø3.68×9.68″), 930g(2.05 Ib) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox (SBO-090GP) : Single, Double, 4″ Octagon (sold separately) |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| Compatible Models | |
| Back Box | SBO-140BW, SBO-140WW |
| Ceiling Mount (Single Unit) | SBP-140CMT |
| Pole Mount | SBD-140PMW |
| Corner Mount | SBD-140KMB |
| Cabinet | SBP-150NBW |
| Gang Plate | SBO-090GP |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 42.7m(140.20ft) / Tele: 186.9m(613.28ft) |
| Observe (63PPM/ 19PPF) | Wide: 17.2m(56.08ft) / Tele: 75.4m(245.31ft) |
| Recognize (125PPM/ 38PPF) | Wide: 8.5m(28.04ft) / Tele: 37.4m(122.66ft) |
| Identify (250PPM/ 76PPF) | Wide: 4.3m(14.02ft) / Tele: 18.7m(61.33ft) |
