Product Specification
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 16CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | ||
| Local Display | HDMI1: 3840×2160(30Hz), HDMI2: 1920×1080(60Hz) | |
| Multi Screen Display | Clone Mode : Dynamic layout Expand Mode : HDMI1 Dynamic layout, HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
|
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(480fps), D1(960fps) |
|
| Performance | ||
| Operating System | ||
| Embedded | Linux | |
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 128Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
|
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 40CH(Local 16CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | ||
| Supported HDD | Up to 10TB | |
| HDD Slot | SATA 2ea(Max. 20TB) | |
| Backup | ||
| File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 128Mbps | |
| Audio | ||
| GUI | 16 CH(network) | |
| Web | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware |
|
| Web viewer | ||
| Supported OS | Windows 10, macOS 11 | |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3’rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Register | Auto, Manual | |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Preset | 300 Presets | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback |
|
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

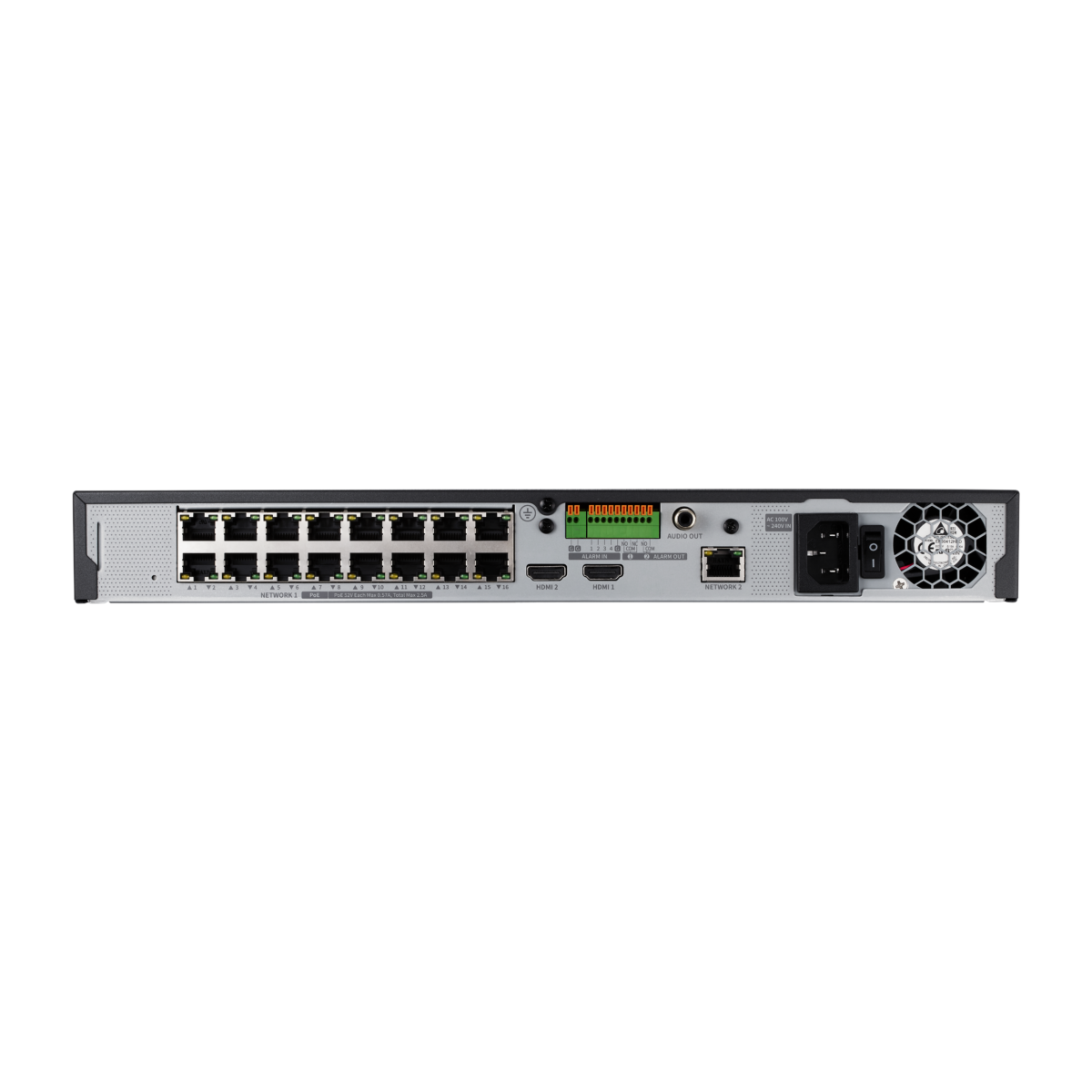

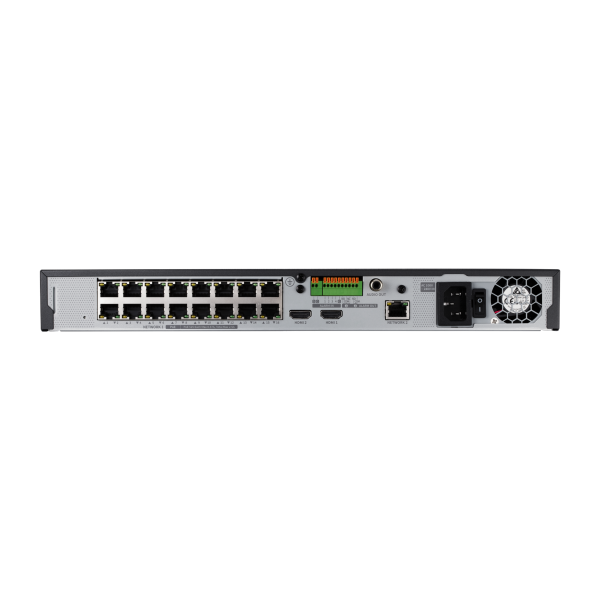

| Interface | ||

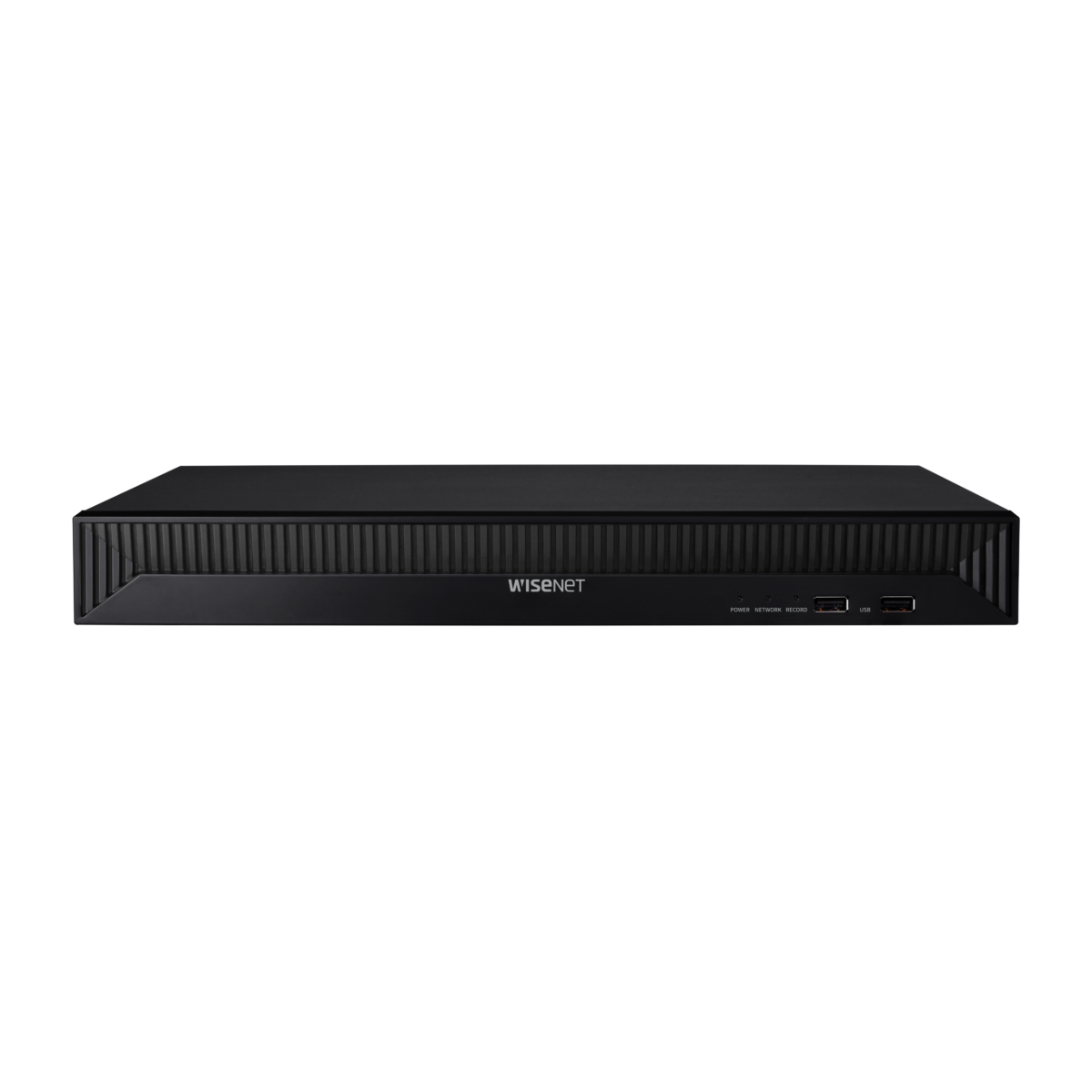

| Front | ||
| Indicator | Power, Record, Network | |
| Storage | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA (RCA output) | |
| Ethernet | PoE+ RJ-45 16EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| Alarm | In 4EA, Out 2EA | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | ||
| Log List | Max. 100,000 (System Log, Event Log each) | |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 200W(682 BTU with 2HDD, PoE ON) | |
| PoE Budget | 130W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 370.0 x 50.7 x 320 mm (14.6 x 2.0 x 12.6 inch) | |
| Weight | 2.87Kg (6.33 lb) | |
